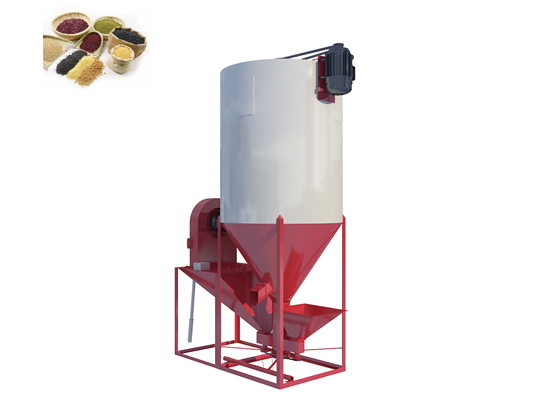

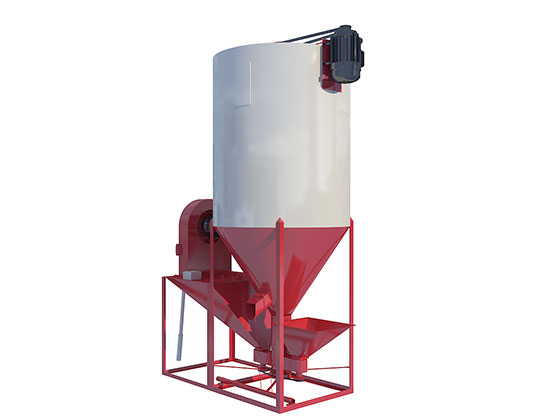

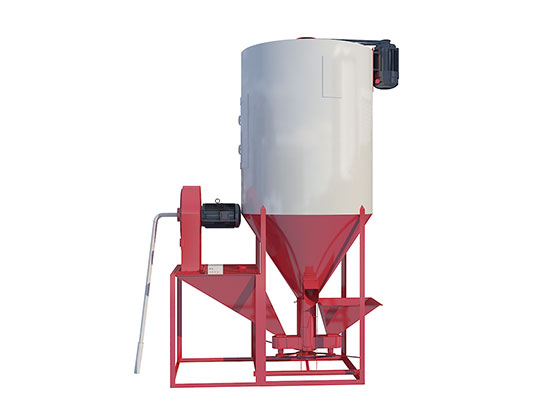

This 2 in 1 feed crushing and mixer is mainly used to crushing and mixing kinds of raw materials to produce poultry feed.
1.Feed outlet  2.Main shaft of mixer 3. bag for dispersing air 4. V-belt
5. Motor for mixer  6.Grinder 7.elbow pipe 8. Feeding suction tube
9. Hopper 10.Hopper 11. Rack of grinder 12.Suction pipe 13.Motor of grinder
14.Absorb bunker

Feed crushing and stirring - body working principle:
The feed crushing and mixing machine is divided into two parts: a crusher and a mixer.
1. Structure of the pulverizer: There are two kinds of feeding modes: self-priming and forced (according to the appropriate pulverizer according to the model). After the material is sucked into or sent to the pulverizing chamber, the material is crushed by the high-speed rotation of the hammer, and A screen is used to ensure the particle size of the pulverized material.

2. Stirring mechanism: When the material propeller starts to rotate, the small hopper impeller chamber of the material is forcibly sent into the conveying pipe, and then lifted to the top of the mixing drum by the propeller, when the material is evenly scattered in the mixing drum. The material is in the mixing tank. The ascending and descending and the left and right rotation are continuously performed to form a mixing process, thereby achieving a uniform mixing effect.
