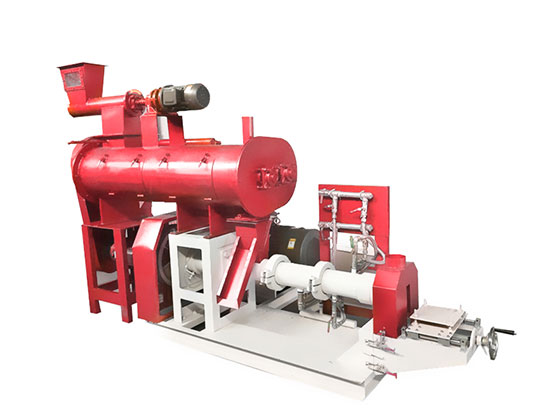

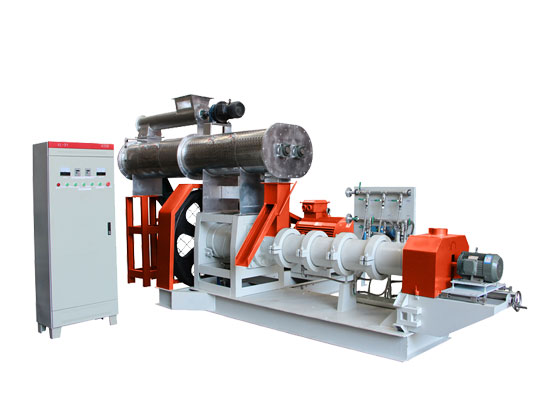

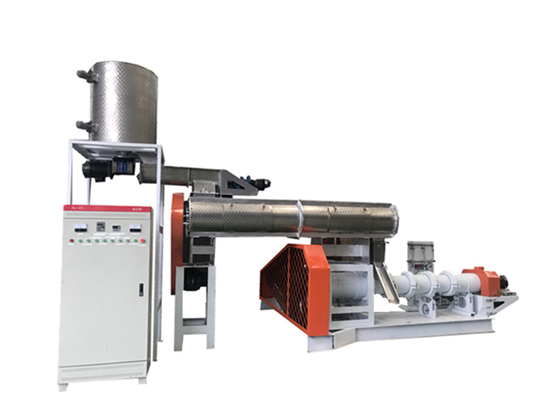

200KG-5T Wet Type Extruder Fish Feed Pellet Machine

Floating wet type extruder fish feed pellet machine also called Wet type fish feed extruder, which consists of feeding system, extruding system, peeling systems, heating system, transmission system, and control system. By employing advanced screw extrusion technology, it is widely preferred in fish farms and fish feed processing plants.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

According to the feeding characteristics of different aquatic animals, such as benthic animals such as river crabs, they are accustomed to looking for food at the bottom of the water, using a slower feeding method, so that the required feed pellets should not be too hard, too strong, and should be as salty as possible. Loss caused by fine debris during biting. From this point of view, the puffed feed is more suitable: the puffed and granulated feed is easy to absorb and soften, suitable for foraging, and can also reduce the loss of debris generated during foraging, reduce feed waste and water pollution. Moreover, the expanded feed has a long water resistance and a high degree of ripening.
Finish curing and extrusion molding the feed materials by the application of high temperature and high pressure.
The host machine is with frequency control to ensure the stability of the production process, and the final product can be varied according to production requirements.
We also manufacture and supply the floating fish feed pellet machine with small and large capacity for your choice.
Twin-screw wet extruders are commonly used to produce expanded feed. The matching material is sent to the conditioner through the conveying device, and the material is quenched and tempered by the high temperature steam in the conditioner, and the leaching tank enters the expanding mechanism, and is pumped by a pair of parallel meshing screws, from a certain shape of the die hole. Instantly cut and cut into pellets. There are many factors affecting the expansion of materials, but they are mainly related to the conditions of quenching and tempering, the operating conditions of the extruder and the material properties. Changing the extrusion conditions can control the uplift of the extruded feed.

Fish feed pellet machine can be divided into 2 types: small Dry type and Large wet type.

Wet type: The wet type fish feed pellet machine. It is equipped with a preparation device to ripen the feed raw materials, and is usually used for large-volume production of feed lines for use with boilers.it can produce neat and uniform beautiful ultra-small diameter particles, has good self-cleaning effect, no need to disassemble, good ripening degree, high water content, wide application range, can produce high oil, high moisture materials, mainly Used in aquatic feed, pet food and animal feed.



Dry type: The dry type fish feed pellet machine also called  single-screw extruder. It is usually used for small-volume feed production, The single-screw extruder has a relatively stable work and strong shearing force, but it is easy to block the discharge hole. It needs to be manually disassembled and cleaned every time it is used. The heat distribution is uneven when the material is extruded, compared with the wet twin-screw extruder. The curing uniformity is poor, the moisture content is low, and the scope of application is limited. It is mainly used for processing raw materials, poultry and farmed feed.

200KG-5T Wet Type Extruder Fish Feed Pellet Machine
Machine Functions

200KG-5T Wet Type Extruder Fish Feed Pellet Machine
01
This high efficiency fish feed pellet making machine is widely used for making feedstuff for all kinds of fish.
200KG-5T Wet Type Extruder Fish Feed Pellet Machine
02
The pellet size from1.5mm to 12mm, fit for different fishes. The pellet can floating on the water over12 hours, no have any pollution to the water and the fish.
200KG-5T Wet Type Extruder Fish Feed Pellet Machine
03
We have different scales, the capacity from 50kgs to 2 tons (this is a production line) per hour. It can produce such as cat food, dog food, fish food, bird food and so on.
200KG-5T Wet Type Extruder Fish Feed Pellet Machine
04
We can also OEM color according to the clients’ different requirements.
Product features

1. Extrusion processing is a processing technology that passes raw materials through high temperature, high pressure and instant maturation, and integrates conveying, crushing, extrusion, mixing, shearing, high temperature sterilization and molding.
2. It can process viscous, high fat and high moisture raw materials.
3. Good water resistance, the aquatic feed pellets can be very stable in water. Whether it is a soaking feed or a floating feed, it can be kept from immersion in water for 12 hours, which can maintain the water quality of the culture and reduce the waste of feed.
4. Higher digestibility. The digestibility of starch, protein and the like is improved, and the strong extrusion can degrade some of the compact cellulose and keratin proteins, so that the digestibility is greatly improved.
5. Excellent palatability. The finished puffed particles have the characteristics of porous and uniform texture, and produce partial aroma substances, which increase the feeding traits of the feed, stimulate the appetite of the aquatic animals, and increase the feed intake.
6. Broaden the scope of raw material utilization. The twin-screw extruder can enrich the feed resources by processing excess water, grease or cellulosic material into other forms of aquatic products.
Product parameter

Model Screw Dia.
(mm)
Capapcity
(kg/h)
Motor Power
(kw)
Feeder motor(kw) Cutting motor
(kw)
Conditioner Power(kw) Size(mm) Weight(kg)
LM60 60 180-200 15 0.4 0.4 0.75 1780*1250*1300 480
LM70 70 250-300 18.5 0.6 0.6 1.1 2460*1550*1740 940
LM80 80 350-400 22 1.1 0.75 1.5 2650*1450*1750 1000
LM90 90 500-600 37 1.1 1.1 2.2 2600*2100*1900 2000
LM120 120 700-800 55 1.1 1.5 2.2 3200*1950*1900 2200
LM135 135 1000-1200 75 1.5 2.2 3.0 3750*1980*1800 2500
LM160 160 1800-1200 90 2.2 2.2 4.0 6600*2800*2330 3800
LM200 200 3000-4000 132 2.2 3.0 5.5 6600*2900*2350 4500
